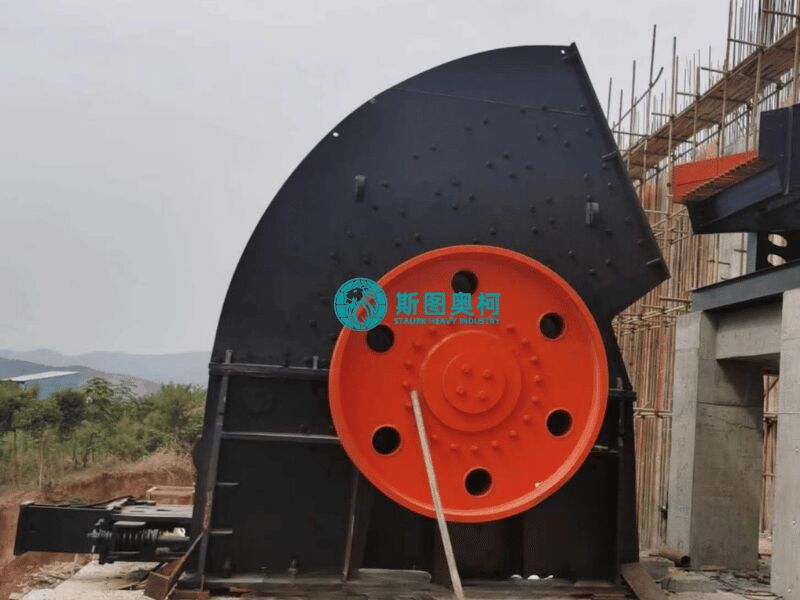

100m3/H-150m3/H Hammer Mill Rock Crusher Hammer Crusher Machine

Hammer Crusher

1.Product Introduction

Hammer Crusher is a mechanical device that utilizes high-speed rotating hammers to impact and crush materials. It is suitable for medium-hard and brittle materials with compressive strengths ranging from 150 MPa to 200 MPa. This equipment finds extensive application in industries such as cement, power generation, building materials, chemical processing, metallurgy, highway construction, and mining.

2.Application

Its applications are extensive, primarily covering the following fields:

• Cement Industry: Crushing raw materials such as limestone.

• Power Industry: Crushing fuels such as coal.

• Building Materials Sector: Processing construction materials like sand, gravel, bricks, and tiles.

• Chemical and Metallurgical Industries: Processing relevant mineral raw materials.

• Highway Construction: Used for aggregate production.

3.Working Principle

The working principle of hammer crushers primarily relies on impact crushing. An electric motor drives the rotor to rotate at high speed, imparting significant kinetic energy to the hammers mounted on it. When materials enter the crushing chamber, they are subjected to direct strikes and impacts from the high-speed hammers, as well as collisions with the impact liners inside the housing. The material is simultaneously subjected to shearing and grinding forces to achieve fragmentation. A screen plate (grate bars) is positioned beneath the rotor. Qualified material smaller than the screen aperture size is discharged directly; material larger than the aperture size is retained on the screen plate, where it continues to be struck and ground by the hammers until it reaches the required particle size for discharge.

4.Advantages

• Simple structure, easy operation and maintenance: The equipment has few components, is simple to install, and is easy to operate and maintain.

• High crushing ratio, high production efficiency: The crushing ratio can reach 10-25, with high output capacity to meet demanding production requirements.

• Lower equipment costs and operating expenses: Initial equipment investment is low, with relatively economical energy consumption and operational costs.

• Uniform and adjustable product particle size: Output particle size can be modified to meet different requirements by adjusting the screen bar spacing.

• Compact footprint: The overall equipment volume is relatively small.

5.Technical Specifications

6.Our Solutions
