30TPH-100TPH Aggregate Production Line Stone Crusher Equipment

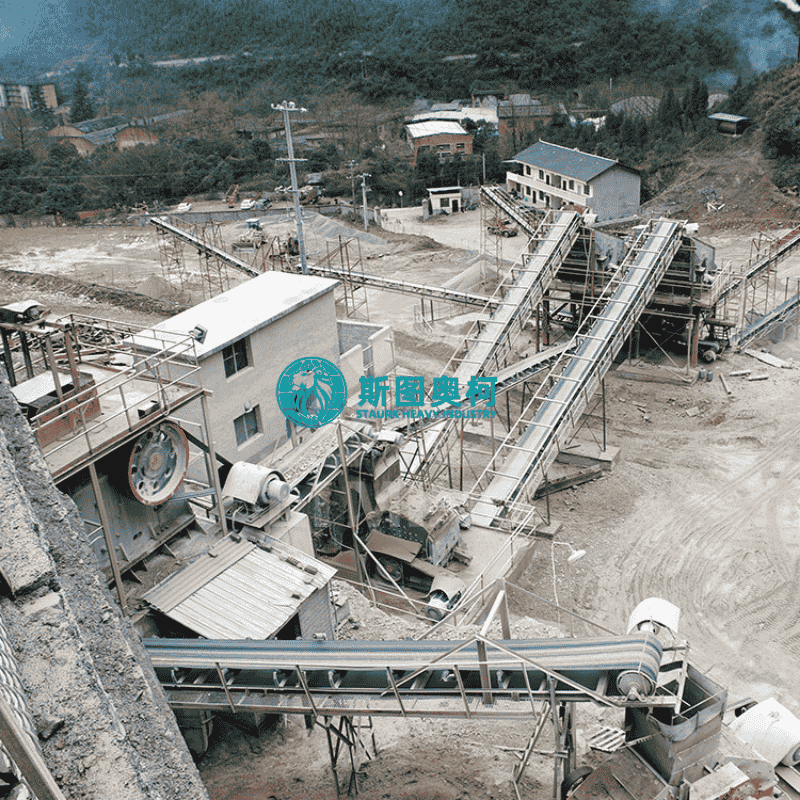

30TPH-100TPH Aggregate production line

1.Product Introduction

30TPH–100TPH Aggregate Production Line is an integrated mechanical system designed for the large-scale production of construction aggregates. It is capable of crushing, screening, and processing large raw rocks into graduated aggregates with particle sizes that meet engineering standards. These systems are widely utilized in highway, railway, hydraulic engineering, and building concrete projects.

2.Our Solutions

• System Configuration: Collaborative Multi-stage Crushing and Intelligent Screening The production line is typically composed of the following core equipment modules, forming a full closed-loop "Feeding – Crushing – Screening – Conveying" process:
• Vibrating Feeder  Ensures uniform and continuous feeding of raw materials (such as granite or limestone) into the primary crusher, effectively preventing blockages and system overloads.
• Primary Crushing: Jaw Crusher  Performs coarse crushing of raw rocks, reducing feed sizes (e.g., $le$ 750mm) to below 200mm. It is designed with high compressive strength adaptability for tough materials.
• Secondary Crushing: Impact or Cone Crusher  Further reduces coarse material to the finished product size range (e.g., 5–31.5mm). Impact crushers are ideal for medium-hard materials, while cone crushers are better suited for high-hardness rocks.
• Vibrating Screen  Conducts multi-layer screening of the crushed material to separate finished aggregates of various specifications (e.g., 0–5mm, 5–10mm, 10–20mm). Oversized/unqualified particles are returned to the crusher for re-processing.
• Belt Conveyor  Connects each equipment module to achieve automated material flow. Some systems are equipped with intelligent speed regulation to match production fluctuations.

3.Applications

• Typical Applications: Production of aggregates for highway stabilized base courses; integrated sand and stone processing for precast concrete component plants.

• Expanded Uses: After adjustment, the system can be utilized for construction waste recycling, enabling the conversion of solid waste into valuable resources.

• Material Adaptability: Capable of processing a wide range of raw materials, including limestone, basalt, river stone, and tailings, offering broad operational versatility.

4. Relevant Cases

Option 1: 50 TPH Limestone Aggregate Production Line (Soft Rock)

• Feeding: ZSW-420×110 (Vibrating Feeder)

• Primary Crushing: PE600×900 Jaw Crusher

• Secondary Crushing: PF1214 Impact Crusher

• Screening: 2YK1848 Triple-deck Vibrating Screen

• Conveying: B650×20m Belt Conveyors (3 units)

• Key Features: Estimated investment of $115,000–$145,000 (approx. 800k–1M RMB). It delivers excellent particle shape (cubical) and is ideally suited for small-to-medium concrete batching plants.

Option 2: 80 TPH Granite Aggregate Production Line (Hard Rock)

• Feeding: GZD600×2000 (Vibrating Feeder)

• Primary Crushing: PE750×1060 Jaw Crusher

• Secondary Crushing: HPT200 Multi-cylinder Hydraulic Cone Crusher

• Screening: 3YK2460 Four-deck Circular Vibrating Screen

• Conveying: B800×25m Belt Conveyors (4 units)

• Optional Upgrades: Dust suppression system and enclosed workshop housing.

• Key Features: High wear resistance and exceptionally stable operation. Specifically designed to meet the quality requirements for high-grade concrete aggregates.
