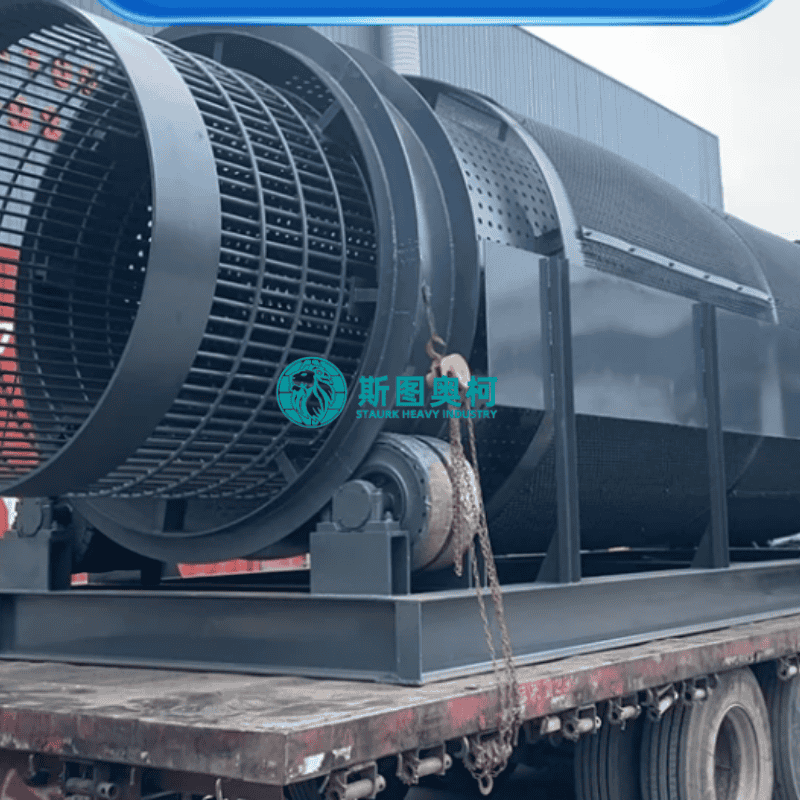

Gold Mining Equipment Trommel 100TPH Heavy Duty Gold Wash Trommel

Heavy duty gold wash plant trommel

1.Product Introduction Gold Separation Equipment

The Heavy-Duty Gold Wash Plant Trommel is a high-capacity industrial solution engineered for the most rigorous mineral recovery environments. Unlike lighter portable versions, these units are built with thick-walled steel drums and reinforced chassis to process massive volumes of abrasive "run-of-mine" (ROM) material. They are designed to operate 24/7, providing the mechanical force necessary to liberate gold from heavily compacted or "cemented" gravels and dense sticky clays. This equipment acts as the heart of a large-scale alluvial mining operation, ensuring high-speed classification and maximum recovery of both coarse nuggets and microscopic "flour" gold.

2.Application Gold Separation Equipment

• Large-Scale Placer Mining: Processing thousands of cubic meters of riverbed or terrace gravels daily.

• Industrial Clay-Heavy Operations: Handling "sticky" deposits where standard vibrating screens fail due to material buildup.

• Cemented Gravel Recovery: Breaking down prehistoric, hardened "deep lead" channels that require intense mechanical scrubbing.

• Primary Scalping & Washing: Serving as the first stage in a complex mineral circuit, feeding secondary jigs, spirals, or centrifugal concentrators.

3.Working Principle Gold Separation Equipment

• Aggressive Attrition Scrubbing: The first section of the drum is typically "blind" (unperforated). Internal high-profile lifter bars and heavy-duty chains tumble the ore violently under high-pressure water, creating a "rock-on-rock" scrubbing effect that dissolves the toughest clay matrices.

• Multi-Stage Classification: As the slurry moves forward, it enters the screen sections. These are often modular, allowing for multiple output sizes (e.g., 5mm, 12mm, and 25mm) to be separated simultaneously for different recovery tools.

• Continuous Tailings Discharge: Large barren boulders are moved through the drum by internal spirals and ejected onto a heavy-duty tailings conveyor for disposal.

• High-Volume Water Distribution: A dedicated manifold system feeds internal spray bars and "clay-breaker" nozzles, ensuring every particle is washed clean of gold-bearing film before exiting the system.

4.Advantages Gold Separation Equipment

• Massive Throughput Capacity: Engineered to handle flow rates ranging from 100 TPH to over 500 TPH, making it suitable for major commercial mining projects.

• Extreme Durability: Features heat-treated drive rollers, high-manganese screen plates, and reinforced sub-frames to withstand the constant impact of large rocks.

• Unmatched Clay Liberation: The combined length and diameter of the drum provide the "retention time" necessary to fully liquefy mud, ensuring 0% gold loss to clay balls.

• Low Downtime Design: Built with industrial-grade components—such as heavy-duty trunnion wheels and direct-drive gearboxes—to minimize mechanical failure during peak production.

• Flexible Recovery Integration: The large undersize discharge area can be split to feed multiple sluice runs or industrial gravity concentrators, allowing for a highly customized recovery circuit.
