Product Details
Place of Origin: China
Brand Name: Staurk
Certification: CE ISO
Model Number: YK Series
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 2000USD-80000USD
Packaging Details: Container or Bulk Cargo Ship or Flat Rack
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets
Processing Capacity: |
5TPH-200TPH |
Input Size: |
＜540mm |
Output Size: |
0-100mm(can Be Adjusted) |
Origin: |
China Manufacturer |
After Sale Service: |
Our Engineers Will Do Installtion And Commissioning And Training On Site If Need |
OEM: |
Acceptable (buyer Provide Drawings) |
Motor Brand: |
China Famous Brand |
Years Experience: |
More Than 20 Years |
Service Before Sale: |
General Drawing Avaliable |
Quality Inspection: |
Acceptable By Third Party Like SGS,TUV,etc |
Processing Capacity: |
5TPH-200TPH |
Input Size: |
＜540mm |
Output Size: |
0-100mm(can Be Adjusted) |
Origin: |
China Manufacturer |
After Sale Service: |
Our Engineers Will Do Installtion And Commissioning And Training On Site If Need |
OEM: |
Acceptable (buyer Provide Drawings) |
Motor Brand: |
China Famous Brand |
Years Experience: |
More Than 20 Years |
Service Before Sale: |
General Drawing Avaliable |
Quality Inspection: |
Acceptable By Third Party Like SGS,TUV,etc |

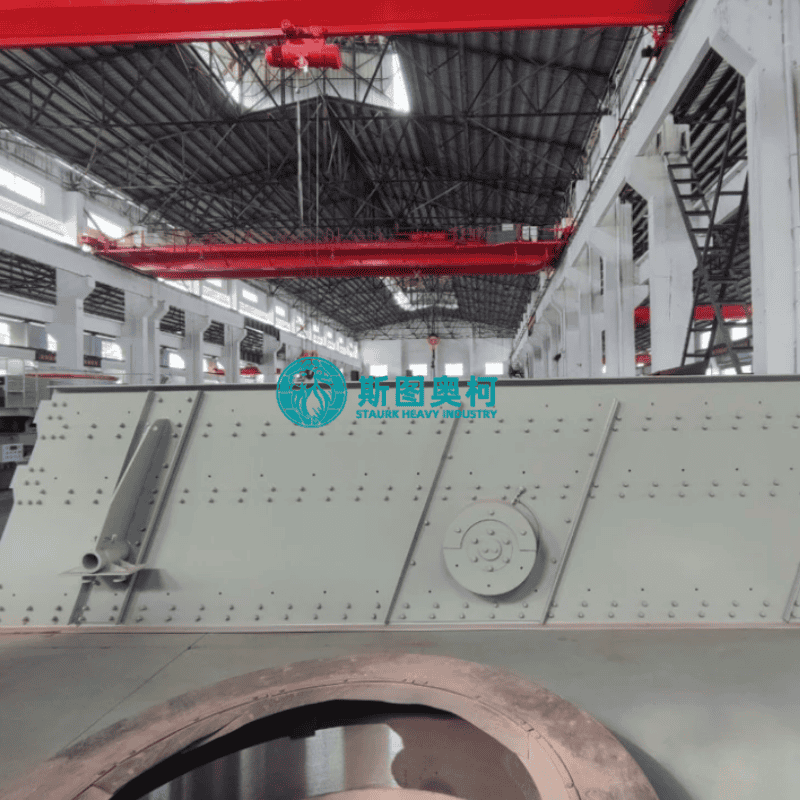

Linear motion vibrating screen for ore sizing
1.Product Introduction Mineral Screening Machine
The Linear Motion Vibrating Screen is a high-efficiency mineral classification system specifically engineered for mining beneficiation circuits. By utilizing a linear vibration pattern, it achieves precise mineral screening, significantly enhancing processing throughput and resource utilization rates.
2.Application Mineral Screening Machine
Core Beneficiation Stages: Used for the classification of iron ore, non-ferrous metal ores, and more. It separates minerals by particle size to optimize downstream grinding and separation processes.
Resource Recovery: Processes tailings or low-grade ores to recover usable minerals, minimizing resource waste.
Industrial Feedstock Pretreatment: Ideal for the preliminary screening of mineral raw materials in the metallurgical and chemical industries to ensure high-quality downstream processing.
3.Working Principle Mineral Screening Machine
Linear Vibration Mechanism: Driven by dual counter-rotating vibrating motors, the screen body undergoes linear motion. This force causes the mineral feed to stratify on the screen surface; coarser minerals rise to the top layer, while finer particles and impurities sink to the bottom.
Precision Grading Process: A multi-deck design (typically 2–3 layers) enables precise size classification. "Oversize" material consists of large mineral particles, while "undersize" material consists of fines or impurities. The mesh aperture is adjustable to meet specific ore requirements.
Dynamic Balancing System: An integrated counterweight adjustment device automatically optimizes vibration amplitude and frequency. This ensures stable material flow and prevents "blinding" (clogging) or uneven distribution across the screen deck.
4.Advantages Mineral Screening Machine
Superior Classification Efficiency: The combination of multiple decks and optimized vibration parameters significantly boosts screening performance. The system is highly adaptable, capable of processing mineral streams from fine to medium particle sizes.
Robust Durable Construction: Critical components are manufactured from high-strength, wear-resistant materials, extending the equipment's service life and reducing the frequency of maintenance.
Stable Reliable Operation: Flexible couplings and damping buffers reduce noise and energy consumption, ensuring stability during continuous 24/7 operation and seamless integration with automated beneficiation lines.
Ease of Maintenance: The modular design supports the rapid replacement of screen decks. Localized component wear does not require a total system shutdown, significantly reducing the risk of costly downtime.
5.Technical Specifications
| Model | Screen Model (mm) | Screen Mesh Nos | Screen Area (m2) | Mesh Size (mm) | Max Feeding Size (mm) | Capacity (m3/min) | Vibration Frequency (r/min) | Double Amplitude (mm) | Motor Power (kw) | Inclination (°) | Weight (t) |
| YK1236 | 1200×3600 | 1 | 4.3 | 1-100 | 300 | 30-160 | 970 | 8 | 5.5 | 20 | 3.2 |
| 2YK1236 | 1200×3600 | 2 | 4.3 | 1-100 | 300 | 30-160 | 970 | 8 | 5.5 | 20 | 3.6 |
| 3YK1236 | 1200×3600 | 3 | 4.3 | 1-100 | 300 | 30-160 | 970 | 8 | 7.5 | 17.5 | 4.2 |
| 2YK1245 | 1200×4500 | 2 | 5.4 | 5-50 | 200 | 35-206 | 970 | 7 | 11 | 15 | 4.3 |
| 3YK1245 | 1200×4500 | 3 | 5.4 | 5-50 | 200 | 35-206 | 970 | 8 | 11 | 20 | 4.5 |
| YK1535 | 1500×3500 | 1 | 5.25 | 5-50 | 200 | 34-200 | 970 | 8 | 11 | 15 | 3.4 |
| 3YK1535 | 1500×3500 | 3 | 5.25 | 5-50 | 400 | 34-200 | 970 | 8 | 15 | 20 | 5.7 |
| YK1536 | 1500×3600 | 1 | 5.4 | 1-100 | 400 | 34-200 | 970 | 8 | 11 | 20 | 3.7 |
| 2YK1545 | 1500×3600 | 2 | 5.4 | 1-100 | 400 | 34-200 | 970 | 8 | 11 | 20 | 4.5 |
| YK1545 | 1500×4500 | 1 | 6.75 | 5-50 | 400 | 44-258 | 970 | 8 | 11 | 20 | 3.9 |
| 2YK1545 | 1500×4500 | 1 | 6.75 | 5-50 | 400 | 44-258 | 970 | 8 | 15 | 20 | 5.4 |
| 3YK1545 | 1500×4500 | 3 | 6.75 | 1-100 | 400 | 44-258 | 970 | 8 | 15 | 15 | 5.8 |
| 4YK1545 | 1500×4500 | 4 | 5.4 | 5-100 | 400 | 44-258 | 970 | 8 | 18.5 | 20 | 6.9 |
| 3YK1548 | 1500×4800 | 3 | 7.2 | 5-100 | 400 | 47-275 | 970 | 7 | 15 | 20 | 6.1 |
| 4YK1548 | 1500×4800 | 4 | 7.2 | 5-100 | 200 | 47-275 | 730 | 8 | 18.5 | 20 | 7.1 |
| YK1836 | 1800×3600 | 1 | 6.48 | 5-100 | 200 | 30-200 | 750 | 8 | 11 | 20 | 6.8 |
| YK1848 | 1800×4800 | 1 | 8.8 | 5-100 | 400 | 56-330 | 755 | 11 | 15 | 20 | 7.1 |
| 2YK1848 | 1830×4800 | 2 | 8.8 | 5-100 | 400 | 56-330 | 750 | 11 | 15 | 20 | 8.2 |
| 3YK1848 | 1800×4800 | 3 | 8.8 | 5-100 | 400 | 56-330 | 970 | 7 | 22 | 20 | 8.9 |
| 2YK1854 | 1800×5400 | 2 | 9.72 | 5-100 | 400 | 63-586 | 970 | 7 | 22 | 20 | 9.7 |
| 3YK1854 | 1800×5400 | 3 | 9.72 | 5-100 | 400 | 63-586 | 970 | 7 | 22 | 15 | 10.8 |
| YK1860 | 1800×6000 | 1 | 10.8 | 1-100 | 400 | 56-330 | 970 | 8 | 15 | 20 | 7.8 |
| 2YK1860 | 1800×6000 | 2 | 10.8 | 1-100 | 400 | 56-330 | 970 | 8 | 22 | 20 | 9.6 |
| 3YK1860 | 1800×6000 | 3 | 10.8 | 1-100 | 400 | 63-586 | 970 | 8 | 22 | 14.5 | 10.7 |
| 4YK1860 | 1800×6000 | 4 | 10.8 | 1-100 | 400 | 63-586 | 970 | 8 | 30 | 20 | 11.3 |
| YK2154 | 2100×5400 | 1 | 11.3 | 5-100 | 400 | 73-683 | 730 | 8 | 18.5 | 20 | 8.3 |
| 2YK2154 | 2100×5400 | 2 | 11.3 | 5-100 | 400 | 73-683 | 730 | 8 | 22 | 20 | 10.3 |
| 3YK2154 | 2100×5400 | 3 | 11.3 | 5-100 | 400 | 73-683 | 730 | 8 | 22 | 20 | 11.8 |
| YK2160 | 2100×6000 | 1 | 12.6 | 1-100 | 400 | 81-720 | 970 | 8 | 18.5 | 20 | 9.9 |
| 2YK2160 | 2100×6000 | 2 | 12.6 | 5-100 | 400 | 81-720 | 970 | 8 | 30 | 20 | 11.3 |
| 3YK2160 | 2100×6000 | 3 | 12.6 | 5-100 | 400 | 81-720 | 970 | 7 | 30 | 20 | 12.8 |
| 4YK2160 | 2100×6000 | 4 | 12.6 | 1-100 | 400 | 100-800 | 970 | 8 | 30 | 20 | 14.8 |
| 2YK2280 | 2200×8000 | 2 | 17.6 | 5-150 | 400 | 90-750 | 730 | 8 | 30 | 20 | 11.8 |
| YK2460 | 2400×6000 | 1 | 14.4 | 5-150 | 400 | 150-810 | 730 | 8 | 22 | 20 | 9.3 |
| 2YK2460 | 2400×6000 | 2 | 14.4 | 5-150 | 400 | 150-810 | 730 | 8 | 30 | 20 | 12.4 |
| 2YK-2870 | 2800×7000 | 2 | 39.2 | 5-100 | 400 | 120-680 | 750 | 8 | 22×2 | 20 | 21.2 |
| 3YK-2870 | 2800×7000 | 3 | 58.8 | 5-100 | 400 | 180-720 | 750 | 8 | 22×2 | 20 | 22.4 |
| 2YK-3072 | 3000×7200 | 2 | 43.2 | 5-100 | 400 | 200-700 | 750 | 8 | 22×2 | 20 | 23.6 |
| 3YK-3072 | 3000×7200 | 3 | 64.8 | 5-100 | 400 | 230-800 | 750 | 8 | 22×2 | 20 | 25.5 |
