Product Details
Place of Origin: China
Brand Name: Staurk
Certification: CE ISO
Model Number: YK Series
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 2000USD-80000USD
Packaging Details: Container or Bulk Cargo Ship or Flat Rack
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets
Processing Capacity: |
5TPH-200TPH |
Input Size: |
＜540mm |
Output Size: |
0-100mm(can Be Adjusted) |
Origin: |
China Manufacturer |
After Sale Service: |
Our Engineers Will Do Installtion And Commissioning And Training On Site If Need |
OEM: |
Acceptable (buyer Provide Drawings) |
Motor Brand: |
China Famous Brand |
Years Experience: |
More Than 20 Years |
Service Before Sale: |
General Drawing Avaliable |
Quality Inspection: |
Acceptable By Third Party Like SGS,TUV,etc |
Processing Capacity: |
5TPH-200TPH |
Input Size: |
＜540mm |
Output Size: |
0-100mm(can Be Adjusted) |
Origin: |
China Manufacturer |
After Sale Service: |
Our Engineers Will Do Installtion And Commissioning And Training On Site If Need |
OEM: |
Acceptable (buyer Provide Drawings) |
Motor Brand: |
China Famous Brand |
Years Experience: |
More Than 20 Years |
Service Before Sale: |
General Drawing Avaliable |
Quality Inspection: |
Acceptable By Third Party Like SGS,TUV,etc |

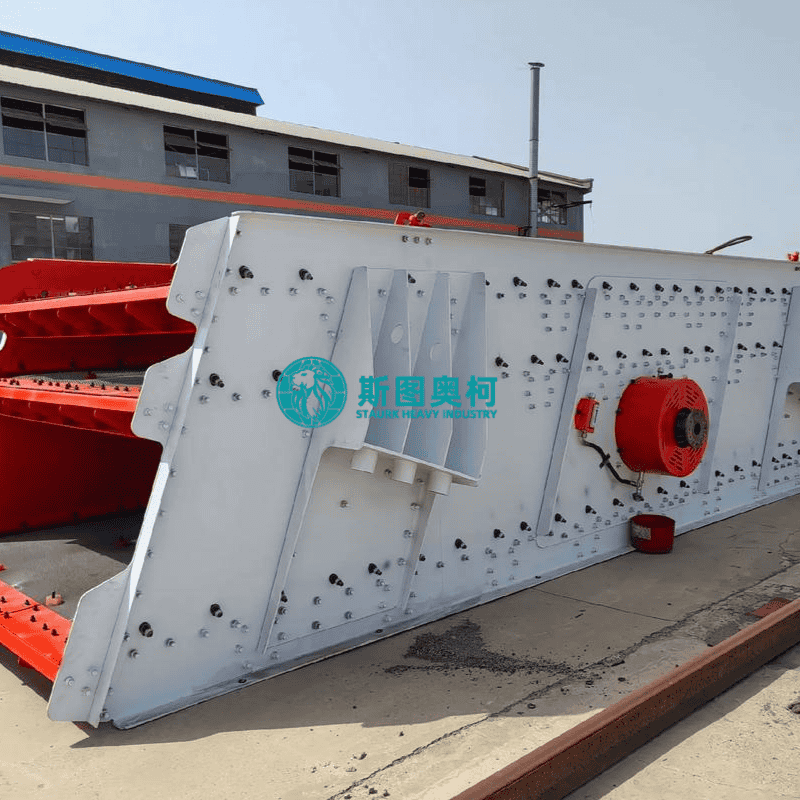

20TPH-100TPH Multi deck circular vibrating screen for minerals
1.Product Introduction Mineral Screening Machine
The 20TPH–100TPH Multi-Deck Circular Vibrating Screen is a high-efficiency mineral classification system specifically engineered for mining beneficiation circuits. By utilizing multiple screening decks and a circular vibration pattern, it achieves precise mineral grading, significantly enhancing processing efficiency and resource utilization rates.
2.Application Mineral Screening Machine
Core Beneficiation Stages: Used for the classification of iron ore, non-ferrous metal ores, and more. It separates minerals by particle size to optimize downstream grinding and separation processes.
Resource Recovery: Processes tailings or low-grade ores to recover usable minerals, minimizing resource waste.
Industrial Feedstock Pretreatment: Ideal for the preliminary screening of mineral raw materials in the metallurgical and chemical industries to ensure high-quality downstream processing.
3.Working Principle Mineral Screening Machine
Circular Vibration Mechanism: Driven by an eccentric vibrator, the screen body moves in a circular motion, causing the mineral feed to stratify on the screen surface. Coarser minerals rise to the top layer, while finer particles and impurities sink to the bottom.
Multi-Deck Grading: A design featuring 2–3 layers of screen mesh enables precise size classification. "Oversize" material consists of large mineral particles, while "undersize" material consists of fines or impurities, adapting to diverse mineral processing requirements.
Dynamic Balancing System: An integrated counterweight adjustment device automatically optimizes vibration amplitude and frequency. This ensures stable material flow and prevents "blinding" (clogging) or uneven distribution across the screen deck.
4.Advantages Mineral Screening Machine
Superior Classification Efficiency: The combination of multiple decks and optimized vibration parameters significantly boosts screening performance. The system is highly adaptable, capable of processing mineral streams from fine to medium particle sizes.
Robust & Durable Construction: Critical components are manufactured from high-strength, wear-resistant materials, extending the equipment's service life and reducing the frequency of maintenance.
Stable & Reliable Operation: Flexible couplings and damping buffers reduce noise and energy consumption, ensuring stability during continuous 24/7 operation and seamless integration with automated beneficiation lines.
Ease of Maintenance: The modular design supports the rapid replacement of screen decks. Localized component wear does not require a total system shutdown, significantly reducing the risk of costly downtime.
5.Technical Specifications
| Model | Screen Model (mm) | Screen Mesh Nos | Screen Area (m2) | Mesh Size (mm) | Max Feeding Size (mm) | Capacity (m3/min) | Vibration Frequency (r/min) | Double Amplitude (mm) | Motor Power (kw) | Inclination (°) | Weight (t) |
| YK1236 | 1200×3600 | 1 | 4.3 | 1-100 | 300 | 30-160 | 970 | 8 | 5.5 | 20 | 3.2 |
| 2YK1236 | 1200×3600 | 2 | 4.3 | 1-100 | 300 | 30-160 | 970 | 8 | 5.5 | 20 | 3.6 |
| 3YK1236 | 1200×3600 | 3 | 4.3 | 1-100 | 300 | 30-160 | 970 | 8 | 7.5 | 17.5 | 4.2 |
| 2YK1245 | 1200×4500 | 2 | 5.4 | 5-50 | 200 | 35-206 | 970 | 7 | 11 | 15 | 4.3 |
| 3YK1245 | 1200×4500 | 3 | 5.4 | 5-50 | 200 | 35-206 | 970 | 8 | 11 | 20 | 4.5 |
| YK1535 | 1500×3500 | 1 | 5.25 | 5-50 | 200 | 34-200 | 970 | 8 | 11 | 15 | 3.4 |
| 3YK1535 | 1500×3500 | 3 | 5.25 | 5-50 | 400 | 34-200 | 970 | 8 | 15 | 20 | 5.7 |
| YK1536 | 1500×3600 | 1 | 5.4 | 1-100 | 400 | 34-200 | 970 | 8 | 11 | 20 | 3.7 |
| 2YK1545 | 1500×3600 | 2 | 5.4 | 1-100 | 400 | 34-200 | 970 | 8 | 11 | 20 | 4.5 |
| YK1545 | 1500×4500 | 1 | 6.75 | 5-50 | 400 | 44-258 | 970 | 8 | 11 | 20 | 3.9 |
| 2YK1545 | 1500×4500 | 1 | 6.75 | 5-50 | 400 | 44-258 | 970 | 8 | 15 | 20 | 5.4 |
| 3YK1545 | 1500×4500 | 3 | 6.75 | 1-100 | 400 | 44-258 | 970 | 8 | 15 | 15 | 5.8 |
| 4YK1545 | 1500×4500 | 4 | 5.4 | 5-100 | 400 | 44-258 | 970 | 8 | 18.5 | 20 | 6.9 |
| 3YK1548 | 1500×4800 | 3 | 7.2 | 5-100 | 400 | 47-275 | 970 | 7 | 15 | 20 | 6.1 |
| 4YK1548 | 1500×4800 | 4 | 7.2 | 5-100 | 200 | 47-275 | 730 | 8 | 18.5 | 20 | 7.1 |
| YK1836 | 1800×3600 | 1 | 6.48 | 5-100 | 200 | 30-200 | 750 | 8 | 11 | 20 | 6.8 |
| YK1848 | 1800×4800 | 1 | 8.8 | 5-100 | 400 | 56-330 | 755 | 11 | 15 | 20 | 7.1 |
| 2YK1848 | 1830×4800 | 2 | 8.8 | 5-100 | 400 | 56-330 | 750 | 11 | 15 | 20 | 8.2 |
| 3YK1848 | 1800×4800 | 3 | 8.8 | 5-100 | 400 | 56-330 | 970 | 7 | 22 | 20 | 8.9 |
| 2YK1854 | 1800×5400 | 2 | 9.72 | 5-100 | 400 | 63-586 | 970 | 7 | 22 | 20 | 9.7 |
| 3YK1854 | 1800×5400 | 3 | 9.72 | 5-100 | 400 | 63-586 | 970 | 7 | 22 | 15 | 10.8 |
| YK1860 | 1800×6000 | 1 | 10.8 | 1-100 | 400 | 56-330 | 970 | 8 | 15 | 20 | 7.8 |
| 2YK1860 | 1800×6000 | 2 | 10.8 | 1-100 | 400 | 56-330 | 970 | 8 | 22 | 20 | 9.6 |
| 3YK1860 | 1800×6000 | 3 | 10.8 | 1-100 | 400 | 63-586 | 970 | 8 | 22 | 14.5 | 10.7 |
| 4YK1860 | 1800×6000 | 4 | 10.8 | 1-100 | 400 | 63-586 | 970 | 8 | 30 | 20 | 11.3 |
| YK2154 | 2100×5400 | 1 | 11.3 | 5-100 | 400 | 73-683 | 730 | 8 | 18.5 | 20 | 8.3 |
| 2YK2154 | 2100×5400 | 2 | 11.3 | 5-100 | 400 | 73-683 | 730 | 8 | 22 | 20 | 10.3 |
| 3YK2154 | 2100×5400 | 3 | 11.3 | 5-100 | 400 | 73-683 | 730 | 8 | 22 | 20 | 11.8 |
| YK2160 | 2100×6000 | 1 | 12.6 | 1-100 | 400 | 81-720 | 970 | 8 | 18.5 | 20 | 9.9 |
| 2YK2160 | 2100×6000 | 2 | 12.6 | 5-100 | 400 | 81-720 | 970 | 8 | 30 | 20 | 11.3 |
| 3YK2160 | 2100×6000 | 3 | 12.6 | 5-100 | 400 | 81-720 | 970 | 7 | 30 | 20 | 12.8 |
| 4YK2160 | 2100×6000 | 4 | 12.6 | 1-100 | 400 | 100-800 | 970 | 8 | 30 | 20 | 14.8 |
| 2YK2280 | 2200×8000 | 2 | 17.6 | 5-150 | 400 | 90-750 | 730 | 8 | 30 | 20 | 11.8 |
| YK2460 | 2400×6000 | 1 | 14.4 | 5-150 | 400 | 150-810 | 730 | 8 | 22 | 20 | 9.3 |
| 2YK2460 | 2400×6000 | 2 | 14.4 | 5-150 | 400 | 150-810 | 730 | 8 | 30 | 20 | 12.4 |
| 2YK-2870 | 2800×7000 | 2 | 39.2 | 5-100 | 400 | 120-680 | 750 | 8 | 22×2 | 20 | 21.2 |
| 3YK-2870 | 2800×7000 | 3 | 58.8 | 5-100 | 400 | 180-720 | 750 | 8 | 22×2 | 20 | 22.4 |
| 2YK-3072 | 3000×7200 | 2 | 43.2 | 5-100 | 400 | 200-700 | 750 | 8 | 22×2 | 20 | 23.6 |
| 3YK-3072 | 3000×7200 | 3 | 64.8 | 5-100 | 400 | 230-800 | 750 | 8 | 22×2 | 20 | 25.5 |
