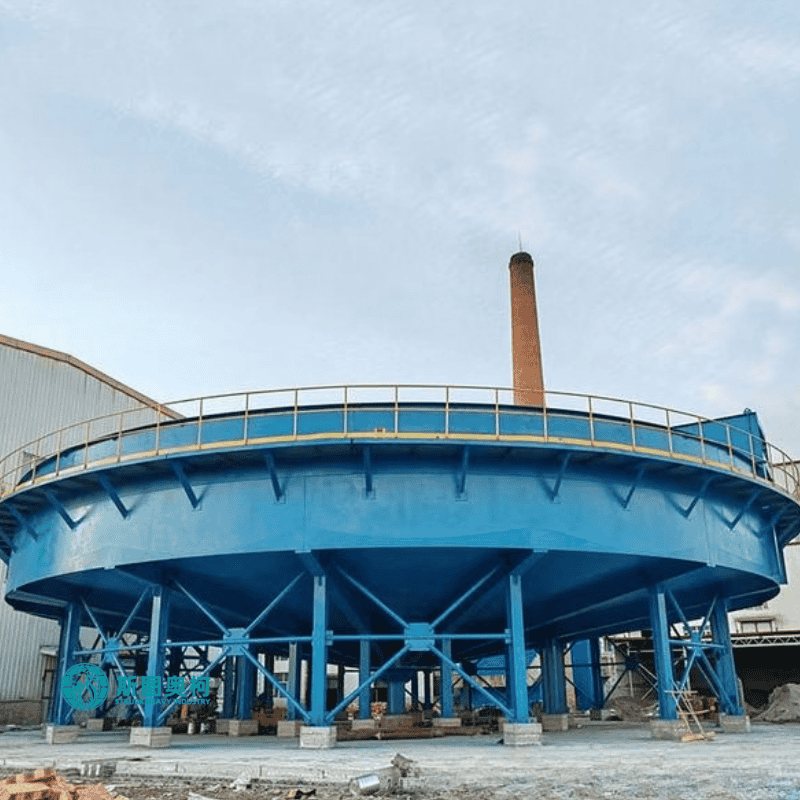

1000TPD Gold Mining Thickener High Efficiency Tailings Thickener

Gold mine tailings High Efficiency Thickener thickening system

1.Product Introduction High Efficiency Thickener

The High-Efficiency Gold Tailings Thickening System is a continuous thickening solution specifically engineered for the treatment of tailings following the gold extraction process. By integrating a deep-cone thickener with a rake-type scraper, the system utilizes gravity sedimentation to rapidly separate solid particles from the tailings slurry. The resulting clarified overflow is converted into recycled water, significantly enhancing resource utilization and mitigating environmental impact. Designed for automation, this system is optimized for large-scale gold mining operations.

2.Application High Efficiency Thickener

• Gold Tailings Treatment: Concentrates and dehydrates tailings slurry within the mineral processing flow, reducing storage risks and enabling the recovery of residual gold and other valuable metals.

• Environmental Protection & Resource Cycling: Processed tailings can be repurposed as backfill material or raw materials for construction, reducing land occupation and the risk of secondary disasters.

• Industrial Water Reclamation: The clarified water produced by the system is recirculated back into the dressing process, drastically reducing fresh water consumption—ideal for water-scarce regions.

3.Working Principle High Efficiency Thickener

• Feeding & Sedimentation: Tailings slurry is uniformly injected into the deep-cone tank through a feed well. Under the influence of gravity, solid particles accelerate toward the bottom to form a sediment layer, while clarified liquid exits via the overflow weir.

• Scraping & Discharge: A rake-type scraper operates continuously, moving the settled tailings toward the central discharge outlet at the bottom of the tank. This ensures continuous operation and prevents system clogging.

• Optimized Design: The deep-cone geometry enhances settling efficiency. Combined with an intelligent control system, it adjusts feeding rates and scraping frequency to adapt to varying tailings characteristics, ensuring process stability.

4.Advantages High Efficiency Thickener

• High Efficiency & Low Energy: The deep-cone design and automated controls significantly accelerate sedimentation and reduce unit energy consumption, supporting 24/7 unmanned operation.

• Environmental Compliance: The enclosed structure and water recycling mechanism minimize dust and wastewater discharge, aligning with international environmental standards and tailings dam safety protocols.

• Resource Optimization: Efficient thickening enables the "waste-to-treasure" transformation of tailings into useful products like concrete aggregates or ceramsite, boosting economic returns.

• Reliability & Durability: Constructed with corrosion-resistant materials and a low-maintenance design, the system is built to withstand harsh mining environments with high operational stability.

5.Technical Specifications

6.Our Solutions
