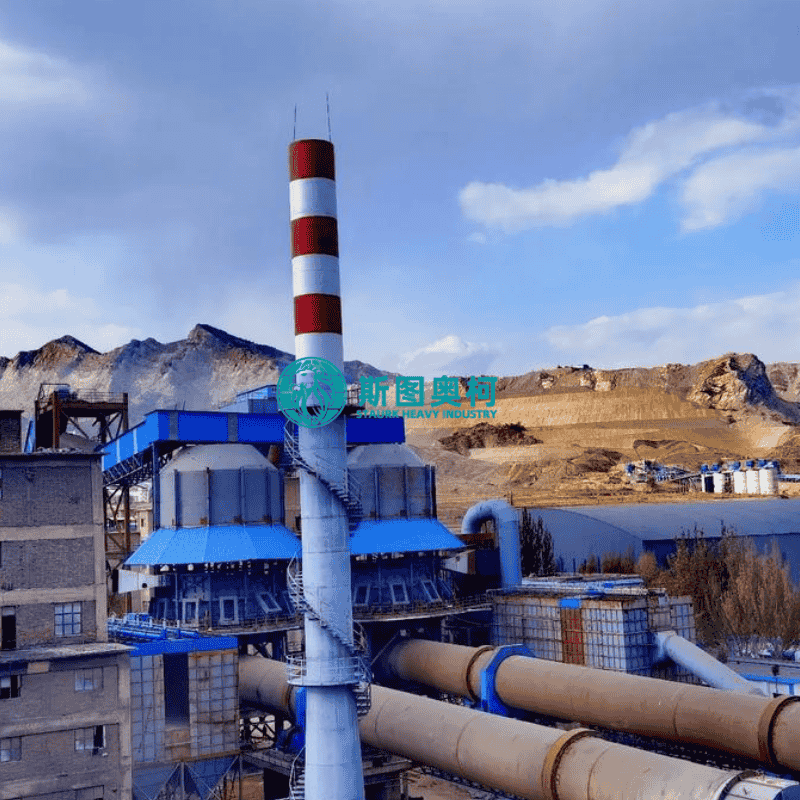

Energy Saving Lime Rotary Calcination Furnace With Vertical Preheater

Energy saving lime calcination rotary kiln with vertical preheater

1.Product Introduction Calcination Rotary Kiln

This equipment is a high-efficiency, energy-saving lime calcination system specifically designed for the steel, construction materials, and chemical industries. By integrating a vertical preheater, the system optimizes energy consumption. Its core function is the conversion of limestone into high-activity calcium oxide (CaO), supporting continuous production while significantly reducing unit energy consumption.

2.Application Calcination Rotary Kiln

• Steel Industry: Producing active lime for steelmaking to enhance steel strength and smelting efficiency.

• Construction Materials: Used in the production of cement, refractories, and ceramics to improve heat resistance and structural stability.

• Environmental Protection: Recovering lime resources during waste treatment processes to mitigate environmental impact.

3.Working Principle Calcination Rotary Kiln

• Preheating Phase: Limestone enters the vertical preheater, utilizing high-temperature exhaust gases from the kiln tail (950–1150°C) to preheat the material to over 800°C. This initiates the partial decomposition of calcium carbonate (CaCO3), shortening the subsequent calcination time.

• Calcination Phase: Preheated materials enter the rotary kiln. At high temperatures of 1100–1350°C, the limestone fully decomposes into calcium oxide and carbon dioxide (CO2). The rotation of the kiln body ensures uniform heat distribution.

• Cooling Phase: The clinker passes through a vertical cooler for rapid cooling. The sensible heat from the lime is used to preheat the secondary air, further increasing overall thermal efficiency.

• Movement Mechanism: The inclined installation and rotation allow for a continuous, tumbling material bed, creating a dynamic heat exchange interface.

4.Advantages Calcination Rotary Kiln

• High Efficiency & Energy Saving: The vertical preheater recovers waste heat from the kiln tail, significantly reducing fuel consumption and markedly improving thermal efficiency.
• Stable Continuous Production: Supports 24/7 non-stop operation with high throughput and uniform product quality, minimizing batch-to-batch variations.
•  Environmentally Friendly: The sealed structure combined with waste heat recovery systems reduces dust emissions and meets modern environmental standards.
• Robust Engineering: Advanced refractory linings and automated control systems extend equipment service life and lower maintenance requirements.

5.Technical Specifications

6.Our Solutions
