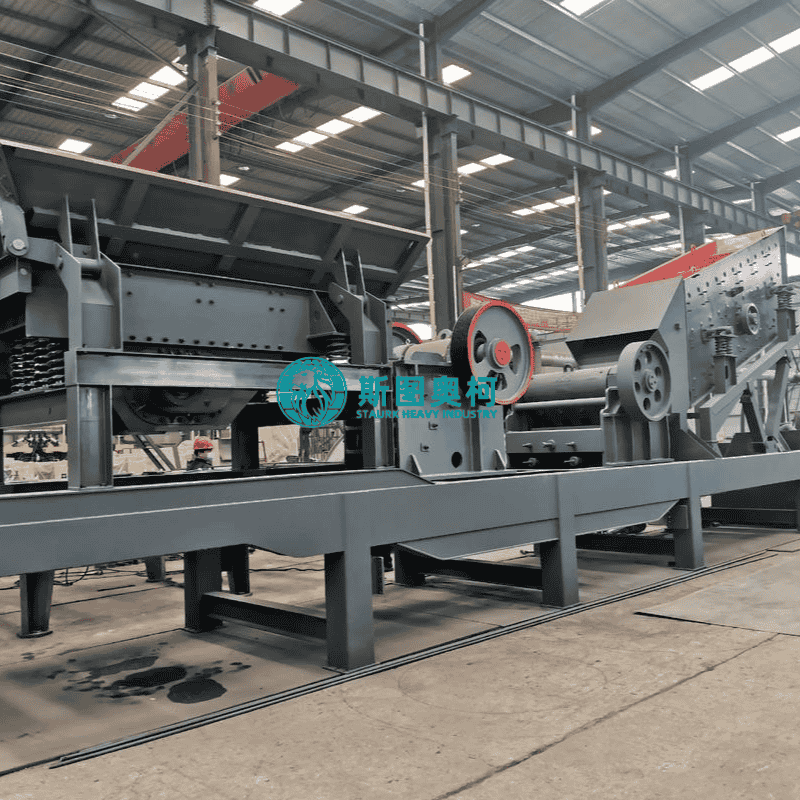

Stone Crusher Portable For Asphalt Recycling And Road Maintenance

Portable crusher for asphalt recycling and road maintenance

1.Product Introduction Portable Stone Crusher

The Portable Asphalt Crusher is a specialized mobile unit designed to transform Reclaimed Asphalt Pavement (RAP) into high-quality recycled aggregate for immediate reuse in road construction and maintenance. Asphalt recycling presents unique challenges: the material is "sticky," contains high-value bitumen, and often includes chunks of road base or soil. This crusher utilizes a high-torque, low-speed Impact Mechanism or specialized Hybrid Jaw technology to break down large asphalt slabs without generating excessive heat that could degrade the bitumen quality. By processing RAP on-site, contractors can reduce material costs by up to 50% and significantly lower the carbon footprint of road repair projects.

2.Application Portable Stone Crusher

• Pavement Rehabilitation: Crushing milled asphalt directly on the job site for use in hot-mix or cold-mix recycling.

• Road Base Stabilization: Producing stabilized base material from a blend of recycled asphalt and crushed concrete.

• Parking Lot & Driveway Construction: Utilizing RAP to create cost-effective, durable surfacing for commercial and residential projects.

• Municipal Maintenance: Enabling city crews to recycle small-scale utility cuts and pothole repairs into usable feedstock.

3.Working Principle Portable Stone Crusher

• Variable Speed Impact: Unlike hard-rock crushers, asphalt units often feature adjustable rotor speeds. Lower speeds prevent the asphalt from "smearing" and melting against the liners, preserving the integrity of the aggregate-bitumen bond.

• Self-Cleaning Feed System: Hoppers are often lined with high-density polyethylene (HDPE) or feature heated surfaces to prevent sticky RAP from bridging or clogging the intake.

• Precision Fines Control: The unit uses an integrated Double-Deck Vibrating Screen to separate the material into specific fractions (e.g., 0–10mm for surface layers and 10–20mm for base layers).

• Magnetic Metal Recovery: An overband magnet extracts manhole covers, utility pipes, and steel reinforcement often found embedded in urban road debris.

4.Advantages Portable Stone Crusher

• Substantial Cost Savings: Eliminates the dual costs of landfill tipping fees for old asphalt and the purchase price of virgin aggregates and bitumen.

• Preservation of Bitumen: The gentle crushing action ensures the aged bitumen remains adhered to the stone, allowing it to be "re-activated" during the heating process in a mobile asphalt plant.

• Compact Urban Footprint: Designed with a narrow chassis and advanced noise suppression, these units can operate in residential neighborhoods and busy city centers without disrupting traffic.

• High Reduction Ratio: Capable of processing large, irregular "slabs" of asphalt directly from a backhoe or loader and reducing them to a consistent 0–20mm product in a single pass.

• Environmental Sustainability: Promotes a circular economy in civil engineering by reducing the demand for new quarrying and minimizing the energy-intensive transport of materials.
