triple pass rotary dryer for biomass materials

Product Overview‌

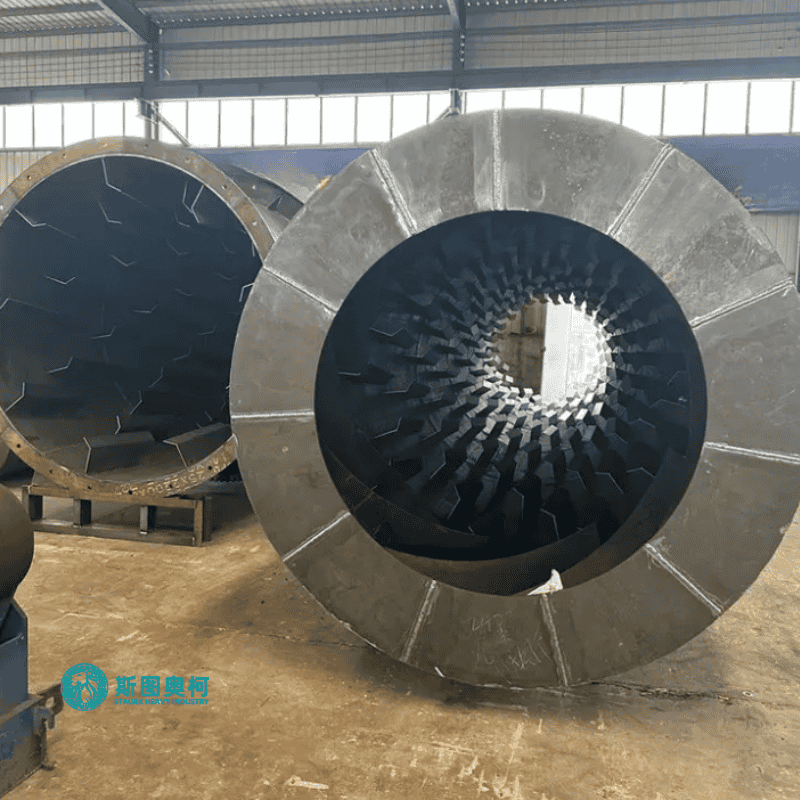

The triple pass rotary dryer for biomass materials is a high-efficiency energy-saving industrial drying equipment tailored for the biomass processing sector. It adopts a three-layer nested multi-pass drum structure, which can adapt to various typical biomass raw materials including sawdust, wood chips, straw and biomass residues, stably reducing their initial moisture content to the 8%-15% range that meets the strict feed requirements for subsequent pelletizing, briquetting and clean combustion. It is a widely recognized high-performance drying solution in the global biomass industry.

Core Technical Advantages for Biomass Scenarios‌

This series of dryers has prominent performance highlights brought by the triple pass design:

The three-layer nested drum structure greatly extends the full heat exchange path of materials, making the contact between biomass materials and hot air more sufficient, and the overall thermal efficiency is far higher than that of traditional single-cylinder dryers.

The full-wrapped high-density insulation layer on the outer wall minimizes shell heat loss, and the unit fuel consumption is reduced by more than 30% compared with conventional models, significantly cutting long-term operation costs.

The segmented adjustable anti-sticking lifting flights can adapt to different physical properties of various biomass materials, effectively avoiding common problems such as material sticking to the wall and uneven drying.

The compact integrated structure greatly reduces the total floor space and total installed power of the system, making it very friendly for new biomass projects with limited site and power conditions.

Application Values and System Matching Guidance‌

This triple pass rotary dryer can help biomass processing plants flexibly switch between multiple raw materials according to local supply fluctuations, greatly expanding the available range of low-cost raw materials. To give full play to its performance, it is recommended to match it with a supporting high-efficiency biomass hot blast stove and a complete environmental protection dust removal system, building a stable, low-energy-consumption and high-yield biomass drying hub.

Technical Specifications
