sawdust dryer machine for wood pellet production

‌一,Product Overview: The Core Preprocessing Equipment for Biomass Energy Production‌

The sawdust dryer machine is an essential pre-processing unit situated between the crushing and pelletizing stages in a complete wood pellet production line. Its core function is to rapidly and evenly reduce the moisture content of raw wet sawdust, wood shavings and wood chips (which usually have an initial moisture content of 30% to 55%) to the optimal 8%-12% range that perfectly fits the pelletizing process. This step is non-negotiable for high-quality pellet production. Excessively high moisture will severely damage the forming efficiency of pellet mills, shorten the service life of dies, lead to loose and fragile final pellets, cause mildew during storage, and drastically cut down the calorific value of the finished fuel. A reliable and high-efficiency sawdust dryer is the cornerstone that guarantees continuous operation of the whole pellet line, improves pellet quality, boosts combustion performance and lowers overall production energy consumption, directly determining the market competitiveness and economic benefits of the final wood pellet products.

‌二,Working Principles and Mainstream Machine Types: Three Dedicated Drying Routes‌

There are three widely adopted technical solutions for sawdust drying, each with unique working mechanisms and targeted application scenarios:

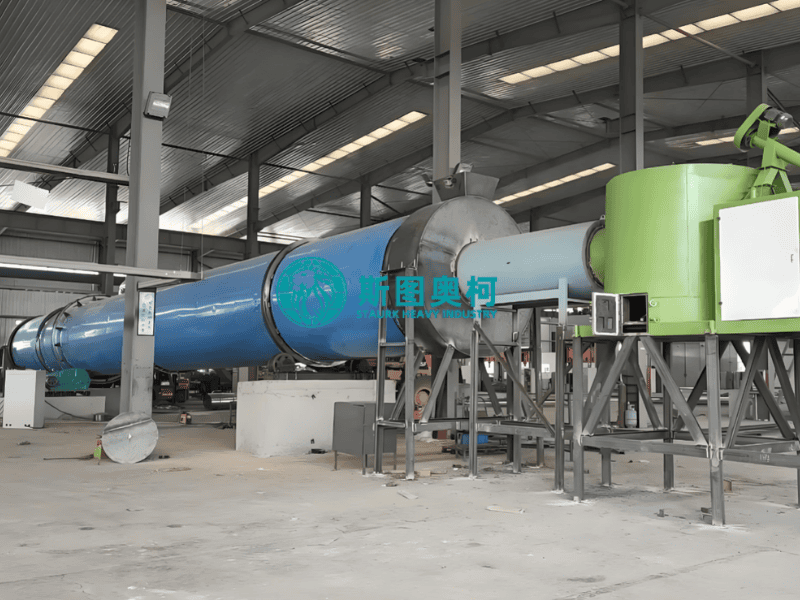

1. ‌Rotary Drum Dryer‌: As the most popular model with the largest processing capacity, it feeds wet sawdust into a large, slowly rotating and slightly inclined cylinder. Specially designed lifting flights inside the drum continuously pick up and shower the sawdust to form a uniform material curtain. High-temperature hot air (from biomass furnaces, gas burners or steam heaters) flows through the curtain in co-current or counter-current mode, completing full heat and mass exchange to evaporate moisture. It features ultra-high throughput (up to dozens of tons per hour), stable operation and strong adaptability to fluctuating initial moisture and particle sizes, making it the top choice for large-scale pellet production lines.
2. ‌Flash/Pneumatic Dryer‌: It follows the "air-borne drying" principle. Wet sawdust is blown and fully dispersed by high-speed hot air in the drying pipeline, finishing the whole drying process within just a few seconds. This instant drying method delivers high thermal efficiency, strong drying intensity and low final product temperature, which can well preserve the natural color of raw materials. It is more suitable for fine-grained, low-viscosity sawdust, with a small footprint. But it requires extremely uniform feeding, has high system air resistance and relatively higher energy consumption.
3. ‌Belt Dryer‌: It belongs to the layered drying category. Sawdust is evenly spread on a moving mesh belt, and hot air passes through the material layer in cross-flow or horizontal flow mode to complete drying. Its advantages lie in mild and uniform drying process, minimal damage to the physical structure of materials, and easy control of the drying curve. However, it has a large footprint, low unit area processing capacity and high initial investment, which is more suitable for special scenarios that require extremely high drying quality, such as producing high-grade raw materials for activated carbon.

‌三,Selection Considerations and System Integration: Build a High-Efficiency Drying Production Line‌

Selecting a sawdust dryer is far more than just picking a standalone unit, but building a highly coordinated and efficient integrated system. The key factors to evaluate include:

• ‌Raw Material Properties‌: You must clarify the wood type (pine, hardwood, mixed materials), initial moisture content, particle size distribution, impurity ratio (bark, sand and stones) and viscosity. These parameters directly determine the dryer type, internal structure design (such as anti-clogging lifting flights) and whether pre-sieving equipment is needed before feeding.
• ‌Capacity Matching‌: Calculate the required water evaporation capacity (tons of water per hour) precisely based on the target hourly output of your pellet line, and reserve 10%-20% extra capacity to cope with raw material fluctuations and future production expansion.
• ‌Heat Source Selection‌: This is the core of controlling long-term operating costs. Biomass combustion furnaces (burning waste sawdust and straw) are the most cost-effective and eco-friendly option that realizes energy self-sufficiency. Natural gas or diesel burners are clean and easy to control but have higher fuel costs. Steam heat exchangers are ideal for scenarios with available industrial waste heat or on-site industrial boilers. A high-efficiency hot air furnace paired with a reasonable hot air distribution system is the key to energy saving.
• ‌Environmental Protection and Safety‌: The drying exhaust contains a large amount of dust and trace volatile organic compounds, so a high-efficiency two-stage dust removal system (cyclone + baghouse filter) must be equipped to meet local emission standards. Meanwhile, since sawdust is a flammable material, the equipment must be fitted with complete explosion-proof, fire-proof designs and over-temperature alarm and shutdown functions.
• ‌Automation and Control‌: Advanced PLC control systems can monitor in real time and automatically adjust key parameters including feeding rate, hot air temperature, drum rotation speed and induced draft air volume, ensuring the outlet moisture stays stably at the preset value, reducing manual intervention, improving product consistency and cutting energy consumption.

• Technical Specifications

  Product Specs (m)	Capacity (T/H)	Main Motor Power (kW)	Main Motor Model	Main Gearbox Model	Ratio
  φ1.2×10m	2.5	7.5	Y160M-R3	ZL50-16-1	-
  φ1.5×12m	3.3 - 4.9	10	Y160L-6B3	JZQ500-III-2F	-
  φ1.5×15m	4 - 6	18.5	Y200L-6	JZQ500-III-2F	-
  φ1.8×12m	4 - 6	11	Y200L-6	ZQ50-16II-2	16.46
  φ2.2×12m	7 - 12	18.5	Y160L-6	JZQ650-III	31.5
  φ2.2×14m	7 - 12	18.5	Y160L-6	JZQ750-III	31.5
  φ2.2×16m	12	30	Y225M-6	JZQ750-III	31.5
  φ2.4×14m	12	30	Y250M-6	JZQ750-III	31.5
  φ2.4×18m	10 - 13	37	Y250M-6	ZL85-13-1	27.16
  φ2.4×20m	10 - 14	37	Y250M-6	ZL85-13-1	27.16
  φ3×20m	25	55	Y250M-4	ZL100-16-1	41.52
  φ3×25m	32 - 36	75	YR280M-4	ZL100-16-1	41.52

•
