ホーム > 製品 > 金鉱石加工設備 > Sawdust Pellet Dryer Equipment Manufacturer

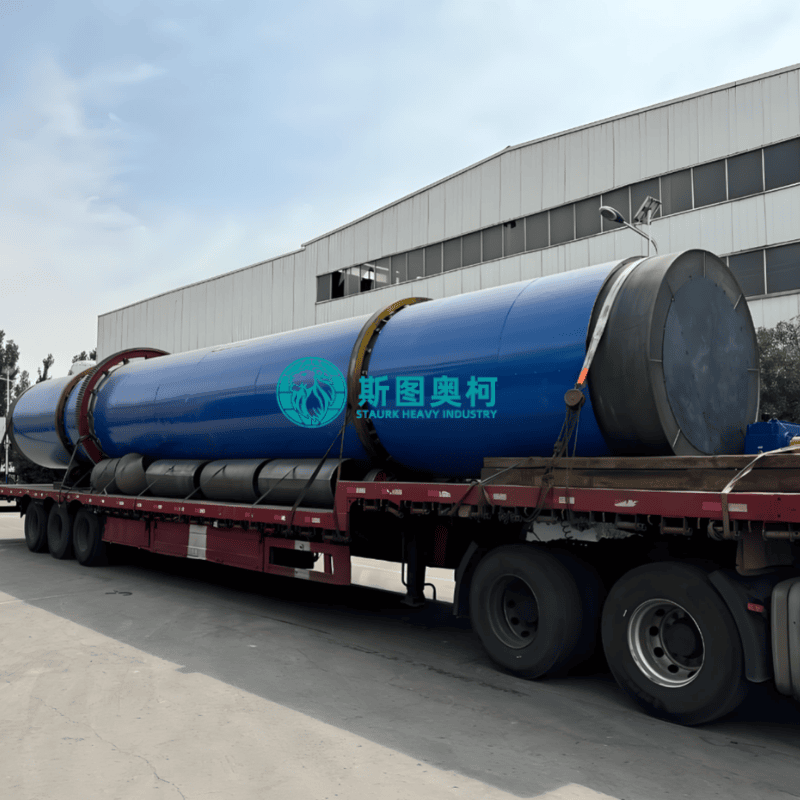

Sawdust Pellet Dryer Equipment Manufacturer

製品詳細

起源の場所: 中国

ブランド名: Staurk

証明: CE ISO

モデル番号: 片軸と両軸

支払及び船積みの言葉

最小注文数量: 1

価格: 2000USD-80000USD

パッケージの詳細: コンテナまたはばら積み貨物船またはフラットラック

受渡し時間: 30

支払条件: L/C、D/A、T/T、D/P、ウェスタンユニオン

供給の能力: 50セット

お問い合わせ
今雑談しなさい
製品詳細
ハイライト:
制御システム:
触覚画面インターフェースによるPLC制御
ProcessingMethod:
重力分離、浮選、シアン化
適用可能なコアタイプ:
金鉱石、銀鉱石、銅鉱石、鉛鉱石、亜鉛鉱石
処理能力:
30TPD~2500TPD
設置タイプ:
固定または移動
使用温度範囲:
-10°Cから45°C
品質検査:
SGS、TUなどのサードパーティによって受け入れ可能
モーターブランド:
中国の有名なブランド
起源:
中国メーカー
電源:
220V/380V、50Hz/60Hz
材料:
高品質の鋼と合金
材料:
炭素鋼など
Years of Experience:
20年以上
入力サイズ:
<540mm
製品名:
金鉱石加工設備
制御システム:
触覚画面インターフェースによるPLC制御
ProcessingMethod:
重力分離、浮選、シアン化
適用可能なコアタイプ:
金鉱石、銀鉱石、銅鉱石、鉛鉱石、亜鉛鉱石
処理能力:
30TPD~2500TPD
設置タイプ:
固定または移動
使用温度範囲:
-10°Cから45°C
品質検査:
SGS、TUなどのサードパーティによって受け入れ可能
モーターブランド:
中国の有名なブランド
起源:
中国メーカー
電源:
220V/380V、50Hz/60Hz
材料:
高品質の鋼と合金
材料:
炭素鋼など
Years of Experience:
20年以上
入力サイズ:
<540mm
製品名:
金鉱石加工設備
製品の説明

一,Industry Overview

A sawdust pellet dryer equipment manufacturer is a specialized industrial supplier that focuses on the biomass pellet processing sector. It is dedicated to the R&D, production and full-service delivery of dedicated drying equipment for sawdust raw materials, providing core pre-processing facilities for global wood pellet plants. Such manufacturers master mature targeted drying technologies, and are key partners that help pellet production projects achieve stable, high-efficiency and low-cost sawdust dehydration.

二,Core Professional Competitiveness of Qualified Manufacturers

Top manufacturers in this field have prominent industry-specific strengths:

  • They hold patented technologies for sawdust anti-sticking, high-efficiency heat exchange and precise moisture control, which can stably reduce high-moisture sawdust to the 8%-12% range that perfectly matches the pellet mill's forming requirements.
  • They can provide customized design for different project scales, site conditions and local heat source conditions, delivering sawdust drying systems that fully adapt to the client's actual production scenarios.
  • They own a large number of verified long-term operation cases in commercial sawdust pellet plants, with equipment performance fully validated by continuous industrial production.
  • They provide full-process services including pre-project solution demonstration, equipment manufacturing, on-site installation guidance, operation training and long-term after-sales support.

三,Practical Selection Guidance

When selecting a suitable sawdust pellet dryer equipment manufacturer, it is recommended to prioritize enterprises with rich practical experience in the pellet industry. You can provide the manufacturer with detailed information such as your sawdust raw material characteristics, designed hourly processing capacity and local available heat source conditions in advance, so that they can output a fully matched exclusive drying system solution for your pellet plant.

Technical Specifications

Product Specs (m) Capacity (T/H) Main Motor Power (kW) Main Motor Model Main Gearbox Model Ratio
φ1.2×10m 2.5 7.5 Y160M-R3 ZL50-16-1 -
φ1.5×12m 3.3 - 4.9 10 Y160L-6B3 JZQ500-III-2F -
φ1.5×15m 4 - 6 18.5 Y200L-6 JZQ500-III-2F -
φ1.8×12m 4 - 6 11 Y200L-6 ZQ50-16II-2 16.46
φ2.2×12m 7 - 12 18.5 Y160L-6 JZQ650-III 31.5
φ2.2×14m 7 - 12 18.5 Y160L-6 JZQ750-III 31.5
φ2.2×16m 12 30 Y225M-6 JZQ750-III 31.5
φ2.4×14m 12 30 Y250M-6 JZQ750-III 31.5
φ2.4×18m 10 - 13 37 Y250M-6 ZL85-13-1 27.16
φ2.4×20m 10 - 14 37 Y250M-6 ZL85-13-1 27.16
φ3×20m 25 55 Y250M-4 ZL100-16-1 41.52
φ3×25m 32 - 36 75 YR280M-4 ZL100-16-1 41.52
